Aluminum Eckel Functional Panel (EFP) Type-4

Eckel EFPs are the solution for loud, acoustically-harsh environments where a combination of high ceilings, reflective surfaces and the din of industrial or recreational activities creates an ideal environment for reverberation and noise. Such conditions can decrease performance and productivity while increasing safety hazards, creating unique challenges for facility managers.

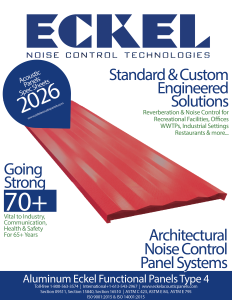

EFP Type-4 3-Part Spec

Categories: , Tags: , , , , ,

Description

EFPs are attractive, sound absorbing, fire-resistant panels which can be spot located on walls and ceilings to achieve effective noise control. Since EFPs are independent
panels, they can be fastened into place without disturbing existing utilities. This functional approach to acoustic control is less expensive than continuous ceiling or
wall treatment.EFPs help solve a number of noise control problems. They can be added to barriers to increase noise reduction capability. Special aluminum EFPs, for example, have been attached to concrete barrier walls around transformers and waste water treatment plants, thereby enhancing the barriers’ acoustic performance as well as preventing a potential community noise problem.

Additional information

Sound Absorption

30" x 120" (760mm x 3050 mm) panel, Tested in accordance with ASTM C 423 and E 795:
125 Hz

6.2 sabins
250 Hz

20.5 sabins
500 Hz

35.2 sabins
1000 Hz

34.5 sabins
2000 Hz

31.5 sabins
4000 Hz

33.1 sabins
NRC

0.99, minimum
Panel Construction

Aluminum
Panel Thickness

2.75 inches (70 mm) “V” ridged facing
Width

30" (760 mm).
Average Weight

30” x 120” (762mm x 3048mm) 21lb/10kg, 30” x 48” (762mm x 1219mm) 9lb/4kg, 30” x 60” (762mm x 1524mm) 11lb/5kg, 30” x 72” (762mm x 1829mm) 13lb/6kg, 30” x 96” (762mm x 2438mm) 17lb/8kg
Acoustical Insulation

2” (50 mm) thick, Density of not less than 1.5 pounds per cubic foot (24 kg/cubic m),, Encapsulated in a 1.5 to 2 mil flame guard polyethylene, Fibrous glass, Fine fibred
Anchors & Fasteners

1/4” (6 mm)-20 x 1” (25 mm) long bolts to attach mounting brackets to the panels, cadmium plated for steel panels, corrosion-resistant anchors for fastening brackets to substrate, stainless steel for aluminium panels
Brackets

4” (100 mm) of clearance between back of panel and mounting surface, Four 11ga (3mm) steel brackets per unit for attachment to walls and ceilings, Other bracket lengths available
Color

White
Facing

0.032 inch (0.8 mm) aluminum sheet, 0.032” (0.8 mm) aluminum sheet, 18ga (1.31 mm) electrogalvanized steel sheet, 3/32" (2 mm) Perforations on 3/16" (4.8 mm) staggered centers, perforated with 3/32” (2 mm) holes on 3/16” (4.8 mm) staggered centers, V-ridged on 6" (150 mm) centers to a depth of 2-3/4" (70 mm), V-ridged on 6” (150 mm) centers to a depth of 2-3/4” (70 mm)
Finish

Factory applied, Polyurethane enamel paint, Unpainted / uncoated mill finish
Framing

0.063” (1.6 mm) aluminum, channel shaped, Channel shaped, Two 1/4-20” (508mm) threaded inserts for each framing member for attachment of panel mounting brackets
Flame Spread

10 Maximum
Smoke Density

10 maximum
