Steel Eckel Correctional Panel (ECP) Type-2 FE

Eckel Correctional Panels are designed to provide an extremely rugged and robust noise control system for correctional facilities such as jails, prisons and other high security environments. ECPs are xtremely rugged 2 1/4″ (57mm)  thick, flat sound-absorbing panels with special security fastening system do not require existing utilities to be relocated. A quality engineered surface mounting system incorporates hidden mounting angles and special security fasteners. ECPs are suitable for corridors, cell blocks, gymnasiums, and various other areas within detention centres, prisons and jails.

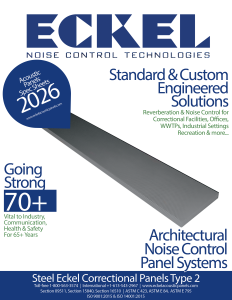

ECP Type-2 Spec Sheets

Description

ECPs provide an extremely rugged noise control system for jails, correctional and high security facilities and feature specially strengthened panels and fastner systems. ECPs are ideally suited for correcting noise and reverb problems where people gather or work, including Pools & Recreational Facilities, Theatres & Auditoriums, Music Schools & Academic Environments, Power Plants & WWTPs as well as other Industrial & Transportation applications. For high humidity applications such as indoor pools or where panels may be exposed to oils or vapours, or for installation in dust-free clean rooms, the 2″ (51mm) thick, fine fibered, fibrous glass acoustical insulation may be enclosed in 1.5-2 mil flameguard polywrap. All ECP Types are available in 4′ (1.2m), 5′ (1.5m), 6′ (1.8m), 8′ (2.4m), and 10′ (3.0m) sizes, permitting application in large or small spaces, as well as, restricted areas. Standard panel size is 10′ (3.0m).



Additional information

Sound Absorption

18" x 96" (460mm x 2440 mm) panel, Encapsulated in a 2.0 mil (0.05 mm) flame guard polyethylene, Tested in accordance with ASTM C 423 and E 795:

125 Hz

4.6 sabins

250 Hz

9.6 sabins

500 Hz

15.2 sabins

1000 Hz

14.5 sabins

2000 Hz

12.6 sabins

4000 Hz

11.1 sabins

Panel Construction

Formed end style panels with formed perforated ends, Steel

Panel Thickness

2.125" (54 mm)

Width

18" (457mm), 36" (914mm)

Length

As indicated on drawings, Up to 96" (2440mm)

Average Weight

18” x 42” (457mm x 1067mm) 18lb/8kg, 18” x 54” (457mm x 1372mm) 22lb/10kg, 18” x 66” (457mm x 1676mm) 27lb/13kg, 18” x 90” (457mm x 2286mm) 37lb/17kg

Acoustical Insulation

2” (50 mm) thick, Density of not less than 1.5 pounds per cubic foot (24 kg/cubic m), Encapsulated in a 1.5 to 2 mil (0.04 to 0.05 mm) flame guard polyethylene, Fibrous glass, Fine fibred

Anchors & Fasteners

Attach panels to mounting angles with 1/4" (6 mm)-20 button head socket security cap screws made of 18-8 stainless steel

Brackets

1/4" (6mm) -20 blind threaded inserts for each angle, Four 11ga (3mm) steel brackets per unit for attachment to walls and ceilings

Color

White

Facing

16ga (1.5 mm) zinc coated steel, perforated with 3/32” (2 mm) holes on 3/16” (4.8 mm) staggered centers

Finish

Factory applied, Polyurethane enamel paint

Flame Spread

10 Maximum

Smoke Density

10 maximum
